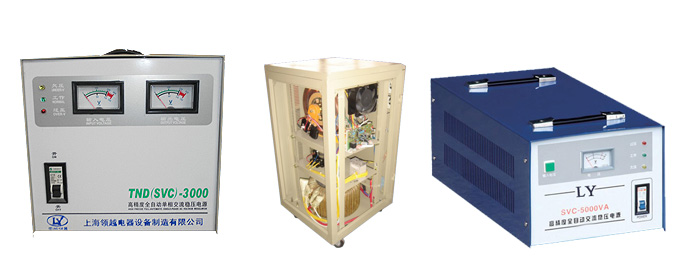

SVC TND series single-phase high accuracy full automatic AC voltage stabilizer
BACK
Standard Specification
+ Overview
     TND (SVC) series high-precision single-phase automatic AC regulator is composed of contact voltage regulator, sampling control circuit and servo motor components, with a beautiful shape, and feel luxurious, affordable, stable and continuous voltage, voltage range, Output waveform distortion and the regulator and reliable. Over high-capacity single-phase power supply SKVA, using a compensation structure, reducing weight, improving the output characteristics, such as over-voltage protection function can also be added according to the needs of users can be extended into the long-and undervoltage protection.

+ Application
     Computers, copiers, test equipment, lighting equipment, television equipment, air conditioning equipment, medical equipment, communications equipment, industrial automation equipment.
+ Technical Data

Name

Parameters

Name

Parameters

Input Voltage

140v-250v  Single-phase

Ambient temperature

-5℃~+40℃

Output Voltage

220V±3%10V±6% Single-phase

Efficiency

〉95%

Frequency

50~60Hz

Overvoltage protection

246±4V Single-phase

Adjustment time

<1 second (input voltage change of 10%)

Delay

Short length of 5 ± 2 minutes 3 ​​seconds

Temperature rise

＜60ºC(full load)

Load power factor

0.8

Waveform distortion

No additional waveform distortion

Dielectric strength

1500V/min

Relative humidity

20~85%

Insulation resistance

Single-phase ±> 5MΩ




+ Model Specification

Specification(KVA)

Dimensions(cm)

Packing size(cm)

Weight(kg)

Sets to(PCS)

Specification(KVA)

Dimensions(cm)

Packing size(cm)

Weight(kg)

Sets to(PCS)

Single-phase

TND-0.5K

22×12×15

25×23×31

20

4

Single-phase



TND-5K(立)

30×25×43

34×27×45

28.5

1

TND-1K

24×15×17

31×25×35

26

4

TND-8K

32×27×48

36×31×51

39

1

TND-1.5K

24×15×17

31×25×35

30

4

TND-10K

32×27×48

36×31×51

40

1

TND-2K

26×18×20

38×28×42

26

2

TND-15K

36×34×65

40×38×69

75

1

TND-3K

30×21×23

44×32×48

32

2

TND-20K

36×34×70

40×38×73

89

1

TND-5K

35×23×28

36×24×29

27

1

TND-30K

40×36×75

44×40×83

135

1

TND-8K

39×26×30

40×27×31

4 0

1

TND-40K

48×40×96

60×52×106

160

1

TND-10K

39×27×32

40×28×33

43

1

Note: special requirements can be customized according to user input range of ultra-low voltage single-phase:80V~250V。
