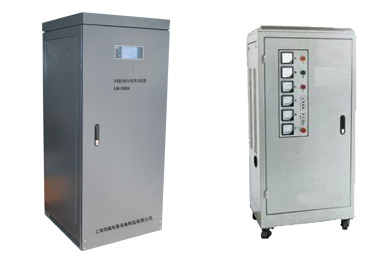

Non-contact single-phase three-phase power regulator microcomputer
BACK
Standard Specification

Overview

     JJW, JSW, series of single, non-contact micro-phase power regulator is a powerful combination of advanced winding compensation and non-contact switches, computer control technology in one exchange regulator, with energy-efficient, quick adjustment, Three-phase automatic balanced no mechanical failure and carbon brush wear, and has a delay, over voltage, under voltage alarm and protection.

Scope
     Radio and television system, the value of micro unmanned station Han communications, industrial control, computer systems, industrial equipment support.

 Technical parameters

Name

Parameters

Input Voltage

Phase voltage 176V-246V, line voltage 304-456V

Output Voltage

Phase voltage Phase Voltage 220V, line voltage

Regulation accuracy

±1%

Efficiency

≥95%

Load power factor

≥(±0.7)

Response time

0.1-0.3 seconds selectable

Waveform distortion

<2%

Frequency

50-60Hz

Ability of instantaneous serial

1.5-2 times the rated current

Long-term continuous

No contact, no noise, no mechanical wear and brush

Features

With over voltage, under voltage, phase, fault diagnosis, signal display, alarm protection
