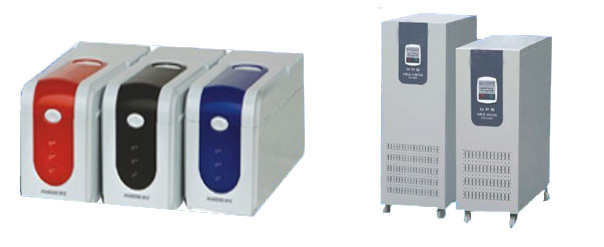

Emergency Power Supply
BACK
Standard Specification
EPS - Usage (EPS emergency lighting power supply) for building the fire occurred or that an emergency situation such as emergency lighting lamps (metal halide lamps open elements, sodium) to provide centralized power supply emergency power unit.
EPS - Mounting (EPS emergency lighting power supply)
Floor-standing, hanging, embedded three
EPS - Standby time (EPS emergency lighting power supply)
90 minutes, the national standard type (according to design requirements Configure standby time)

EPS - size range (EPS emergency lighting power supply)
0.5KW-10KW
Single-phase input (220V, AC) are:
(Standard type) hanging: HBED-0.5KW, 1KW, 1.5KW, 2KW
Embedded: HBED-0.5KW, 1KW, 1.5KW, 2KW
Floor type: HBED-1KW, 1.5KW, 2KW, 3KWV, 4KW, 5KW, 6KW, 7KWV, 8KW, 9KW, 10W
Three-phase input: (380V, AC) are: (Standard) Floor type: HBED-0.5KW, 1KW, 1.5KW, 2KWV, 3KW, 4KW, 5KW, 6KWV, 7KW, 8KW, 9KW, 10KW
Note: The latest national standard GB 17945-2000 "fire emergency lighting" standards for the standby time of 90 minutes




EPS - Features (EPS emergency lighting power supply)
1, using the latest IGBT inverter technology;
2, a centralized power supply mode, no special lighting;
3, the emergency power supply, sine wave AC output voltage, constant frequency, no noise, pollution-free;
4, fire linkage, can be computer monitoring, fire control center.
5, Isolation transformer output.
6, LCD liquid crystal display.

EPS - Advantages (EPS emergency lighting power supply)
1, the design is simple and convenient construction;
2, and lower total cost, reduce investment;
3, long life, the host life span of 20 years;
4, maintenance-free batteries can be recycled 300-500 times;
5, simple to manage instant switch automatically, or unattended;
6, to maintain illumination stable, reliable, easy to maintain;
HBED series EPS Technical Data (EPS emergency lighting power supply)
　　　　　HBED-0.5
　 　　　　　　 KW		 HBED-1KW HBED-1.5KW HBED-2KW HBED-3KW HBED-4KW HBED-5KW HBED-6KW HBED-7KW HBED-8KW HBED-9KW HBED-10KW
　　Power（KW）　0.5 1.0 1.5 2.0 3.0 4.0 5.0 6.0 7.0 8.0 9.0 10
Input Maximum current(A) 　3 7 13 20 25 30 35 16 20 25 28 30
　Voltage(V) 　　　　　　　　　　　　　　　　　Single-phase 220V ± 25% or three-phase 380V ± 25%
　Frequency（Hz)　　　　　　　　　　　　　　　　　　　　50Hz±5%
Output 　Rated current(A)　2.2 4.5 6.8 9.1 13.6 18.1 22.7 27.2 32 36.4 41 45
　Voltage(V) 　　　　Normal: the same response time as the mains voltage: 220V ± 5%
　Frequency（Hz)　 50Hz ± 5% when the emergency 　　　　　　　　　Normal: the same as electricity
　　　Switching time　　　　Less than 5 seconds (special requirements, can be less than 0.25 seconds)
　　　Waveform　　　　　　　Emergency when: sine wave; normal: the same with electricity
　　　Time of emergency power 　　　　　　　　　　　　　　　　　　　　 90分钟(标准型)
　　　Overload capacity　　　　　　　　　　　　　　　　　　　120% load when normal (≥ 30S)
　　　Noise　　　　Static electricity when there is no noise <55dB (when the emergency power supply)
　　　Relative Humidity　　　　　　　　　　　　　　　　　　　　　　　　　 0—90%
　　　Ambient temperature　　　　　　　　　　　　　　　　　　　　　　　　-24℃—40℃
　　　Altitude　　　　　　　　　　　　　　　　　　　　　　　< 2000
　　　To adapt to the load　　　　　　　　　　　　　　　　　　　　　Class is mainly used for lighting and other loads
　　　Weight（kg）　　60 130 180 210 360 410 510 620 700 780 850 940
　　　Output circuit　　3 3 3 3 3 3 3 3 3 3 3 3
